Overview - Entry Assistance, Standard Seat
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

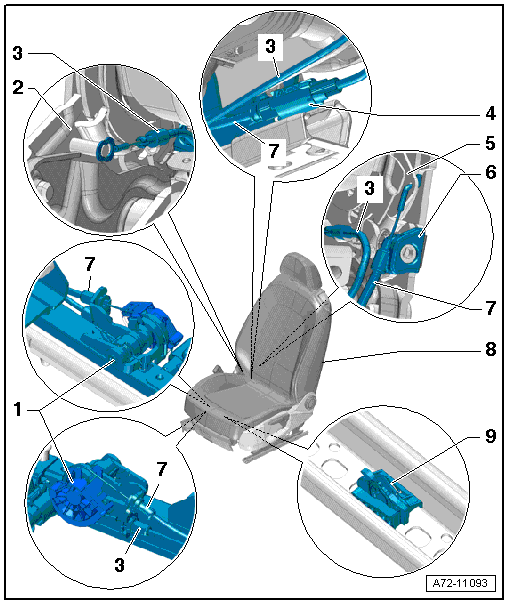

- Seat Rail Release
- With support bracket for the >>entry assistance<< release cables
- Backrest Hinge
- With pin for engaging >>entry assistance<< release cable B
- >>Entry Assistance<< Release Cable B
- From the backrest hinge to the seat rail release
- Removing and Installing. Refer to ENTRY ASSISTANCE RELEASE CABLE B, REMOVING AND INSTALLING .
- Release Cable Adjuster
- For >>Entry Assistance<< release cable A
- Backrest Hinge
- With the strap for engaging the >>entry assistance<< release cable A
- Release Cable Bracket
- For securing the release cable to the backrest frame
- Clipped to the backrest frame
- Release cable component
- >>Entry Assistance<< Release Cable A
- From the backrest hinge to the seat rail release
- Removing and Installing. Refer to ENTRY ASSISTANCE RELEASE CABLE A, REMOVING AND INSTALLING .
- Adjusting. Refer to ENTRY ASSISTANCE RELEASE CABLE A, ADJUSTING .
- Front Seat
- Memory Stop
- Removing and Installing. Refer to MEMORY STOP, REMOVING AND INSTALLING .
