Overview - Backrest Release, Manual Standard Seat

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For clarity, the spring mat, four-way lumbar support and seat frame are not illustrated.

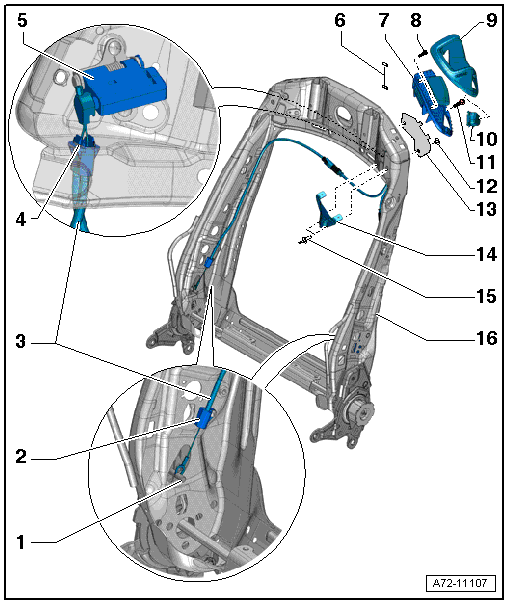

Fig 1: Entry Assistance, Seatback Release Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Pin
- for the backrest release
- On both sides
- Backrest hinge component
Bracket
- For the backrest release cable
- Quantity: 2
- Release cable component
- Riveted to the backrest frame
Release Cable
- For the backrest release
- One piece
- Removing and Installing. Refer to BACKREST RELEASE CABLE, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Adjusting. Refer to BACKREST RELEASE CABLE, ADJUSTING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
Bearing
- For the backrest release cable
- Release cable component
- Clipped to the backrest frame
Bracket
- For the backrest release
- For the backrest release cable
- Riveted to the backrest frame
- Removing and Installing. Refer to BACKREST RELEASE BRACKET, REMOVING AND INSTALLING .
Connecting Cable
- For the backrest release
- Between the handle and bracket
- Engaged in the handle and bracket
- Removing and Installing. Refer to ENTRY ASSISTANCE CONNECTING CABLE, REMOVING AND INSTALLING .
Handle
- With bracket (entry assistance)
- Removing and Installing. Refer to ENTRY ASSISTANCE HANDLE WITH BRACKET, REMOVING AND INSTALLING .
Bolts
- 3.5 Nm
- Quantity: 2
Entry Assistance Trim
- Removing and Installing. Refer to ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, POWER .
Button
- For entry assistance
- For power seats only
Bolt
- 3.5 Nm
Clip
- Quantity: 2
Cover
- For entry assistance
- Removing and Installing. Refer to ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, MANUAL .
Support Plate
- Riveted to the backrest frame
- There are different versions for different equipment
  - Standard Seat
  - Comfort seat
  - Sport Seat
  - Super Sport Seat
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to ENTRY ASSISTANCE SUPPORT PLATE, REMOVING AND INSTALLING .
Rivet
- Quantity: 2
Backrest Frame
