Neck Heating Blower Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

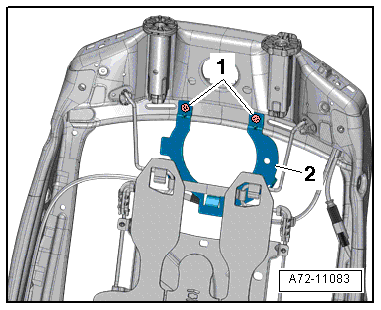

Fig 1: Identifying Bracket & Bolts
GWWA72-11083Courtesy of AUDI OF AMERICA, LLC

-- Remove the neck heating blower. Refer to LEFT AND RIGHT NECK HEATING FAN .

-- Remove the bolts -1- and the bracket -2-.
