Left And Right Neck Heating Fan :V450/:V451, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

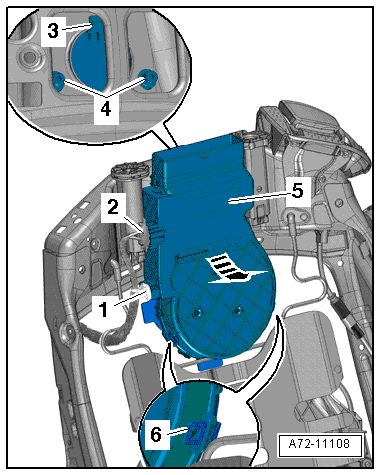

Fig 1: Removing Cabin Heater Blower -5- Downward -Arrow- & Disengage Strap -3- On Backrest Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .

-- Remove the cover with front backrest cushion:

Manual or Power Sport Seat and Comfort Seat. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

-- Press the release and disconnect the connectors -1 and 2-.

-- Disengage the tab on the strap -6- and remove the neck heating blower from its bracket.

-- Remove the neck heating blower -5- downward -arrow- and disengage the strap -3- on the backrest frame.
