Backrest Lock Switch Microswitch, Adjusting

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Backrest Lock Switch, Adjusting. Refer to Fig 1.

Backrest Forward Stop Switch, Adjusting. Refer to Fig 5.

Special Tools And Workshop Equipment Required

Seat Microswitch Sleeve:T40180
Gauge - Seat Microswitch:T40181

Adjusting the Backrest Lock Switch

Fig 1: Adjusting Backrest Lock Switch

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The distance between the pin -3- and the tab -4- on the backrest lock switch must be checked when the backrest is locked.
Do not damage the tab -4- when sliding on the :T40180

-- Slide the :T40180 onto the pin -3- all the way.

The :T40180 and tab -4- must touch each other but must not activate the backrest lock switch -2-.

CAUTION:

If the :T40180 does not touch the tab or if it activates the backrest lock switch, the switch must be adjusted.

-- Unclip the slide retainer -1- with a screwdriver -arrow-.

Fig 2: Releasing Locking Tab -4- In Direction Of -Arrow

Courtesy of AUDI OF AMERICA, LLC

-- Release the locking tab -4- in the direction of the -arrow-.

Fig 3: Releasing Locking Tab -4- In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Move the slide -3- with the backrest lock switch -1- in the direction of -arrow A or B-.

NOTE:

Leave the :T40180 installed on the pin when adjusting the backrest lock switch.

-- Clip the slide retainer -1- in.

Fig 4: Releasing Locking Tab -4- In Direction Of -Arrow

Courtesy of AUDI OF AMERICA, LLC

Backrest Forward Stop Switch, Adjusting

Fig 5: Adjusting Backrest Forward Stop Switch

Courtesy of AUDI OF AMERICA, LLC

The locking bushing -4- must not engage with the spindle -3- ; it must be able to move on the shaft -5-.

-- Place the :T40181 on the hinge piece -2-.

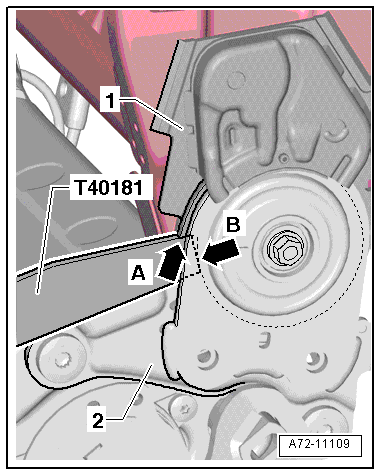

Fig 6: Placing T40181 On Anchor -2-

Courtesy of AUDI OF AMERICA, LLC

-- The front edge of the gauge -arrow B- must lie on the moving hinge piece -1-.

-- Connect an external power source (12 Volt) to the backrest adjustment motor.

-- Move the backrest forward until the hinge piece -1- rests on the :T40181 and the motor switches off.

NOTE:

Depending on the switch position, the backrest adjustment motor may stop before it runs into the block. Run the motor up to the block again. >>The gauge must be clamped in<<.

-- Rotate the spindle -2- until the spindle nut -1- presses the button -arrow-.

Fig 7: Rotate Spindle -2- Until Spindle Nut -1- Operates Button -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Engage the locking bushing -4- with the spindle -3-.

Fig 8: Adjusting Backrest Forward Stop Switch

Courtesy of AUDI OF AMERICA, LLC

-- Remove the gauge.

Checking the Adjustment

-- Move the backrest back slightly using the adjustment motor.

-- Move the backrest forward again until the adjustment motor switches off.

There should be a gap at the location where the gauge was inserted for the adjustment.
The hinge pieces must not be sticking together on the block.
