Overview - Seat Heating Element

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

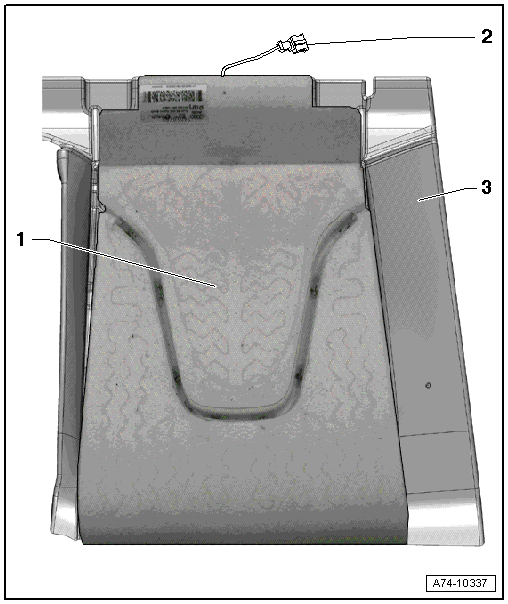

Fig 1: Identifying Seat Bench Heating Element Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bench Seat Heating Element
- Attached to cushion
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
Wire
- Attached to the bench seat heating element
Cushion
- For the bench seat
