Overview - Cover And Cushion, Bench Seat With Center Storage Compartment

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

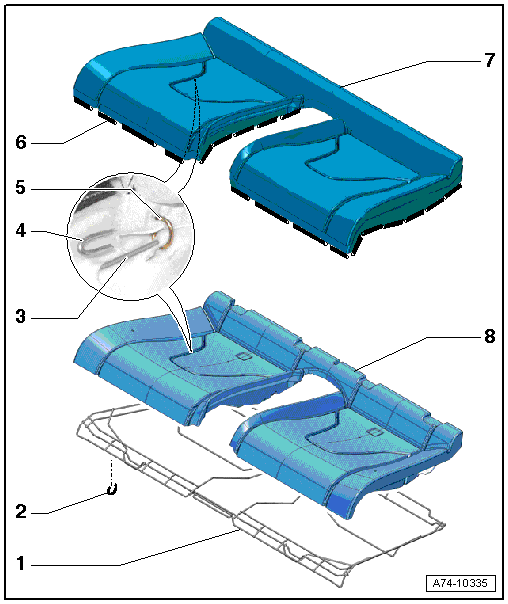

Fig 1: Exploded View Of Cover & Upholstery, Bench Seat With Center Storage Compartment Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Frame
Upholstery Clip
- For attaching the cover to the seat frame
- Always replace if removed
- Install in same location as before removal
Wire
- Encapsulated in cushion
- For securing the cover to the cushion
Contour Wire
- Pushed into the cover mounting pocket
Upholstery Clip
- For securing the cover to the cushion
- Always replace if removed
- Install in same location as before removal
Molding
- Sewn into cover
- For engaging the cover to the seat frame
Cover
- Cover with Cushion, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT .
- Cover and Cushion, Disconnecting and Assembling. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT
Cushion
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT .
- Cover and Cushion, Disconnecting and Assembling. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT
