Cover And Cushion, Separating, Rear Seat Backrest: Disconnecting

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

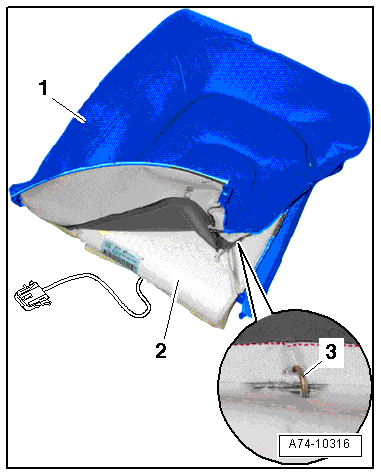

Fig 1: Identifying Rear Seat Backrest Cover, Removing From Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover with the cushion from the rear seat backrest. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .

-- Remove the cover -1- from the cushion -2- as much as possible.

-- Cut through the upholstery clips -3- using pliers.

-- Remove the cover from the cushion.
