Cover And Cushion, Removing And Installing, Rear Seat Backrest: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

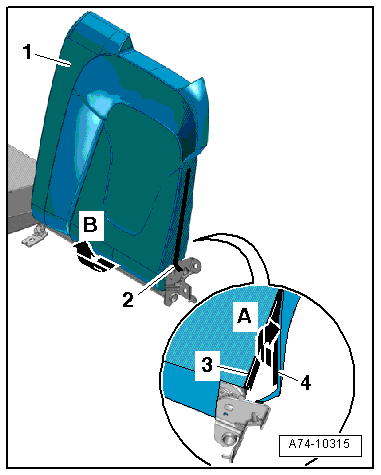

Fig 1: Identifying Rear Seat Backrest Cover And Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Open zipper -2- on both sides of the cover.

-- Open the clamping strips -3 and 4- -arrow A- using the :3409 .

-- Remove the lower cover and cushion -1- forward -arrow B-.

-- Carefully pull the cushion and cover off the adhesive strips on the front side of the backrest shell and remove.
