Backrest Heating Element, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover with the cushion from the rear seat backrest. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .

-- Disconnect the cover from the cushion (rear seat backrest). Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .

-- Cut the wire -3- off directly at the old rear seat backrest heating element -2-.

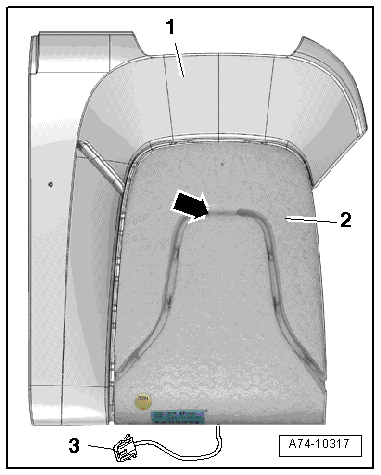

Fig 1: Identifying Rear Seat Backrest Heating Element

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The old rear seat backrest heating element remains on the cushion -1- and the new rear seat backrest heating element is bonded over it.

Ignore the -arrow-.
