Overview - Seat Pan Cover And Cushion, Seat Pan Without Seat Depth Adjuster

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview is based on a manual or power standard front seat and comfort seat.

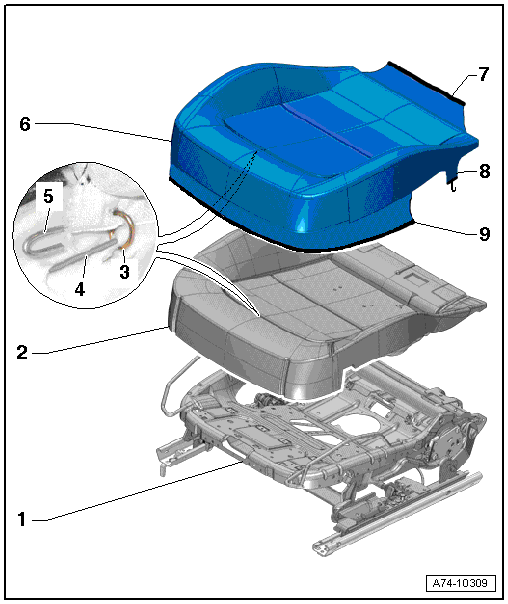

Fig 1: Exploded View Of Seat Cover & Padding, Lower Seat Frame Without Seat Depth Adjuster Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Pan
Cushion
- Cover with Cushion, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER .
- Cover and Cushion, Disconnecting and Assembling. Refer to SEAT PAN COVER AND CUSHION, SEPARATING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER
Upholstery Clip
- For securing the cover to the cushion
- Always replace if removed
- Install in same location as before removal
Wire
- Encapsulated in cushion
- For securing the cover to the cushion
Contour Wire
- Pushed into the cover mounting pocket
Cover
- Cover with Cushion, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER .
- Cover and Cushion, Disconnecting and Assembling. Refer to SEAT PAN COVER AND CUSHION, SEPARATING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER
Retaining Channel
- Sewn into cover
- For engaging the cover to the seat pan upper frame
Tab
- With hook
- For engaging the cover to the seat pan upper frame
Retaining Channel
- Sewn into cover
- For engaging the cover to the seat pan upper frame
