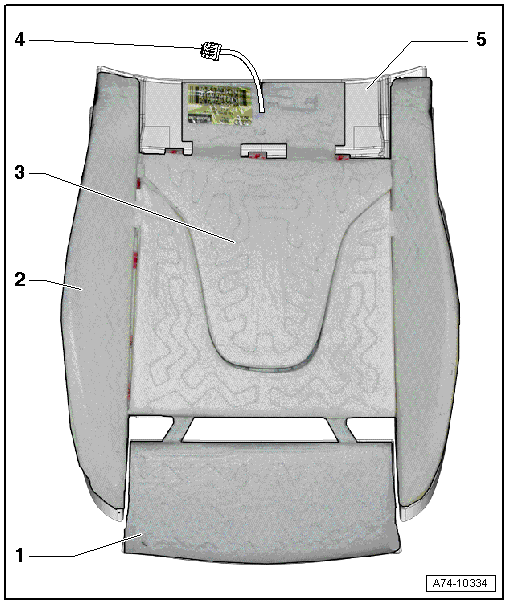

Overview - Seat Heating Element, Sport Seat
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Depth Adjuster Heating Element
- Connected to the seat heating element
- Seat Bolster Heating Element
- Connected to the seat heating element
- Seat Heating Element
- Attached to cushion
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, SPORT SEAT .
- Line
- Connected to the seat heating element
- Cushion
- For the seat pan
