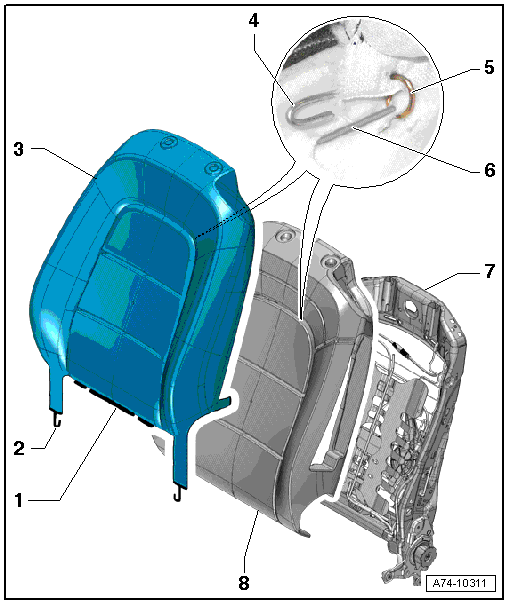

Overview - Backrest Cover And Cushion, Standard Seat/Sport Seat
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview is based on a manual or power standard or sport front seat and comfort seat.
- Retaining Channel
- Sewn into cover
- For attaching the cover to the backrest frame
- Tab
- With hook
- Sewn into cover
- For attaching the cover to the backrest frame
- Cover
- Cover with Cushion, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover and Cushion, Disconnecting and Assembling. Refer to BACKREST COVER AND CUSHION, SEPARATING, STANDARD SEAT/SPORT SEAT
- Contour Wire
- Pushed into the cover mounting pocket
- Upholstery Clip
- For securing the cover to the cushion
- Always replace if removed
- Install in same location as before removal
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
- Backrest Frame
- Cushion
- Cover with Cushion, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover and Cushion, Disconnecting and Assembling. Refer to BACKREST COVER AND CUSHION, SEPARATING, STANDARD SEAT/SPORT SEAT
