Driver/Front Passenger Seat Heating Element -Z6- / -Z8-, Removing And Installing, Sport Seat: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Align the new seat heating element on the cushion.

CAUTION:

Make sure the new seat heating element is affixed to the old heating element.
Remove the protective films in the bonding sequence for the heating element area.
When removing the protective films, make sure the heating element is not damaged and that it is attached without wrinkles.

-- Bond the separate areas of the seat heating element -1- in sequence -E, D, A and C-.

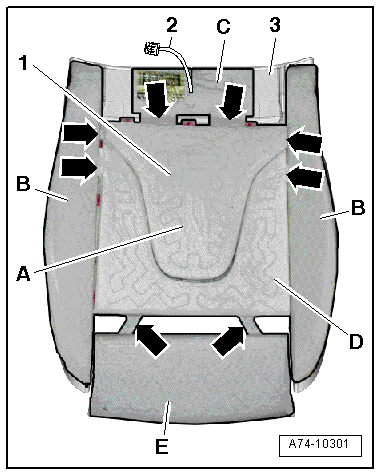

Fig 1: Identifying Seat Heating Element, Sport Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Bond the bolsters areas -B- last.

-- Route the connecting wires to the individual heating surfaces in the base of the gaps -arrows-.

-- Pull the wire -2- through the slit in the cushion -3-.

Further installation is the reverse order of removal.
