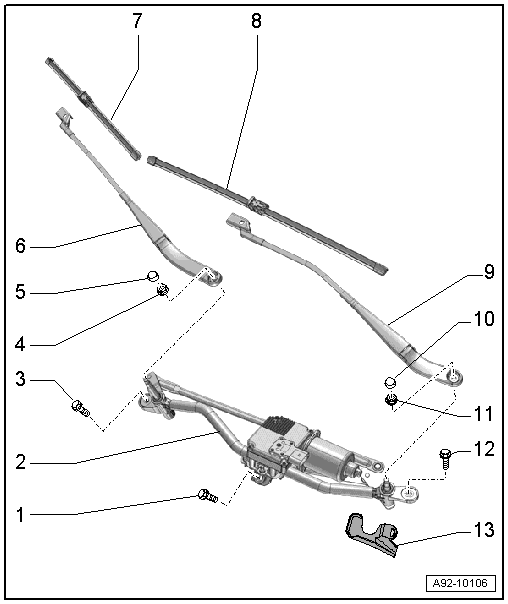

Overview - Windshield Wiper System: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening sequence. Refer to Figure
- Windshield Wiper Motor
- With Wiper Motor Control Module -J400-
- Removing and installing. Refer to WINDSHIELD WIPER MOTOR -V-, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Figure
- Nut
- 17 Nm
- Cap
- Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Passenger Side Windshield Wiper Blade
- There are different lengths. Refer to the Parts Information..
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Blade
- There are different lengths. Refer to the Parts Information..
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information..
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 17 Nm
- Bolt
- Tightening sequence. Refer to Figure
- Water Drain Channel
