Installing The Reverse Gear Clutch

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

As a check, compare the thickness of the new adjustment plates with the thickness of the old adjustment plates performed previously. Refer to REVERSE GEAR CLUTCH, REMOVING AND INSTALLING, SELECTING ADJUSTMENT PLATES . If the values of the old and new adjustment plates deviate too much from each other, then the measurement must be repeated.

All components must be cleaned thoroughly before inserting.

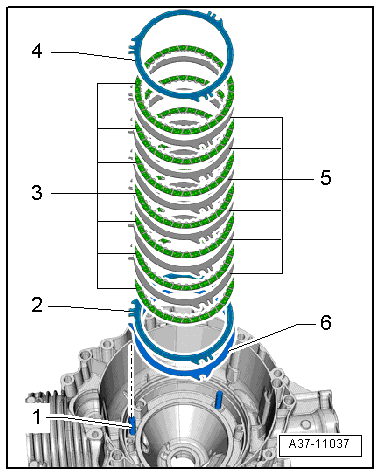

-- Insert the corrugated spring washer -6- into the guides -1- (quantity: 3) inside the transmission.

-- Insert the lower adjustment plate "E₁ " -2- into the guides inside the transmission.

-- Alternating with the same direction for each lining plate -3- and insert an outer clutch plate -5- into the guides in the transmission.

-- Insert the upper adjustment plate "E₂ " -4- first into the guides in the transmission.

-- Adjust the plates for the reverse gear clutch using a straight edge, for example.

Courtesy of AUDI OF AMERICA, LLC

The splines must line up exactly in one row.

-- Install the input shaft. Refer to INPUT SHAFT, REMOVING AND INSTALLING .
