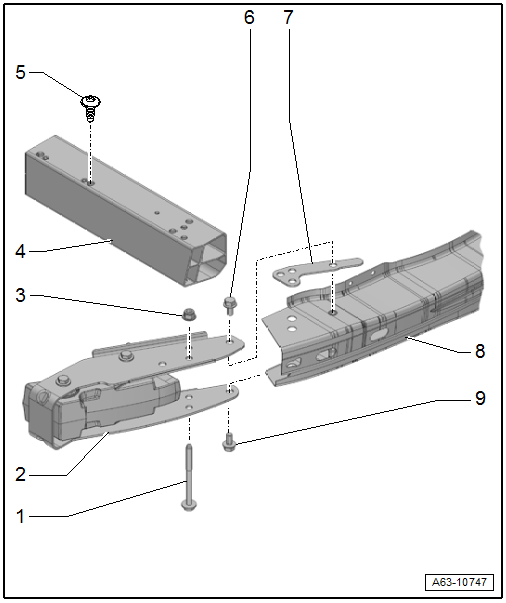

Overview - Impact Absorber, AUDI RS5
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 2
- Vibration Damper
- Removing and installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
- Nut
- 20 Nm
- Quantity: 2
- Impact Member Mount
- Removing and installing. Refer to IMPACT MEMBER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Quantity: 2
- Bolt
- 20 Nm
- Spacer Plate
- Only on rest-of-the-world vehicles
- Impact Member
- There are different versions. Refer to the Parts Iformation.
- Removing and installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING, AUDI RS5 .
- Bolt
- 20 Nm
