Bumper Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tail lamps. Refer to TAIL LAMPS .

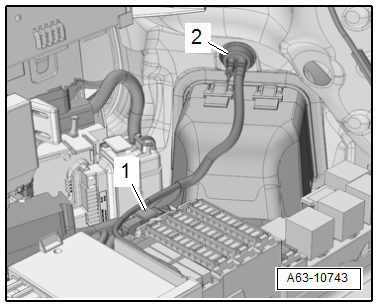

-- If equipped on vehicles through MY 2011, disconnect connector -1- from the Parking Aid Control Module -J446-.

-- Free up the electrical wiring harness on the control module bracket -arrow- by disconnect the cable tie -2-.

-- Press the grommet -3- outward.

-- For vehicles from MY 2012, disconnect the central connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the grommet -2- outward.

-- Remove the nut -2- with Body Socket:T40078 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- on the lower bumper cover section.

-- Loosen the bumper cover locking mechanism -3- by turning the clamping bolt counter-clockwise.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left and right bolts -1- on the bumper side walls.

-- Disengage the left and right bumper side walls on the side panel -arrow-.

-- Remove the bumper cover -2-. The parking aid sensor electrical wire must be guided out through the body opening.

-- Free up the electrical wiring harness spiral clip.

NOTE:

Use a soapy solution if necessary make removal easier.
