Bumper Cover Gap Dimension
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

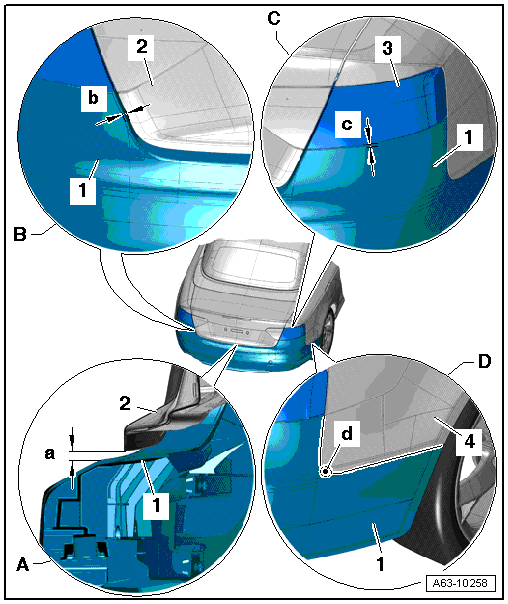

- A - Rear Bumper Cover to the Bottom of the Rear Lid
- Gap dimension -a- = 5.0 mm
-1- Bumper cover
-2- Rear lid
- B - Rear Bumper Cover to the Side of the Rear Lid
- Gap dimension -b- = 3.7 mm
-1- Bumper cover
-2- Rear lid
- C - Rear Bumper Cover to the Outer Tail Lamp Assembly
- Gap dimension -c- = 1.5 mm
-1- Bumper cover
-3- Outer tail lamp assembly
- D - Rear Bumper Cover to the Rear Side Panel
- Zero gap
-1- Bumper cover
-4- Rear side panel
