Air Intake Grille, Removing And Installing, AUDI RS5: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .

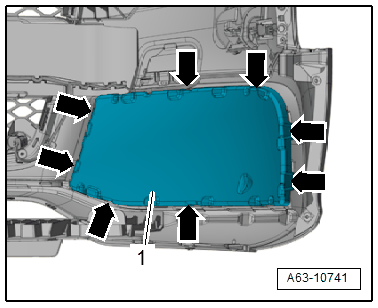

-- Remove expanding rivets -arrows- on the right air intake grille and remove the cover -1- toward the rear from the bumper cover.

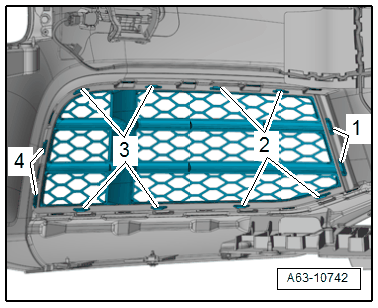

-- Release the retainers in order -1 through 4- and remove the air intake grille from the bumper cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
