Front Wheel Housing Liner

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The wheel housing liners were changed and are one piece, unlike the illustration.

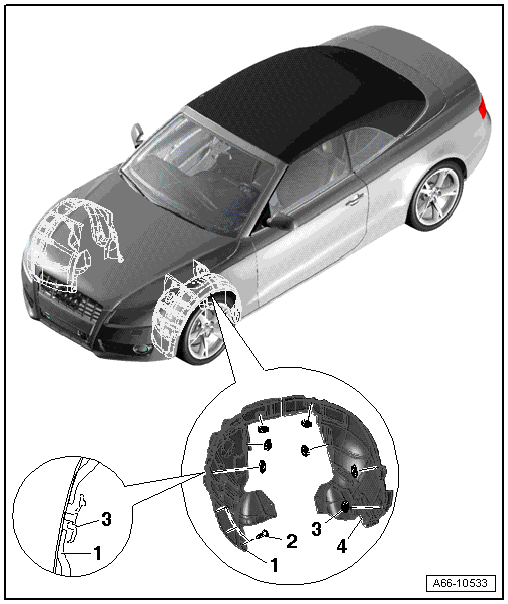

GWWA66-10533Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Wheel Housing Liner
    • Removing:
    • Remove driveshaft cover.
    • Press in front wheel accordingly.
    • Remove the bolts on the lower wheel housing liner.
    • Loosen the retainer on the clips, for example, using a small screwdriver, and slide the clip sideways off the retaining pins.

      -- Disengage wheel housing liner from fender and pull downward and out.

    • Install in reverse order of removal.
  2. Bolt
    • 1.5 Nm
  3. Clip
    • Quantity: 7
  4. Wheel Housing Liner
