Spoiler, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicle must be room temperature (at least 15 °C (59 °F)).

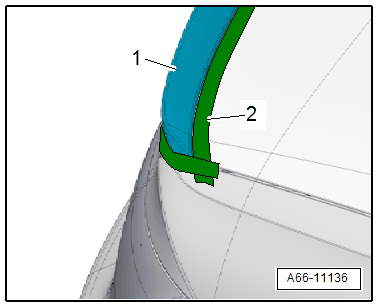

-- Tape off all around the spoiler -1- with fabric-reinforced adhesive tape -2-.

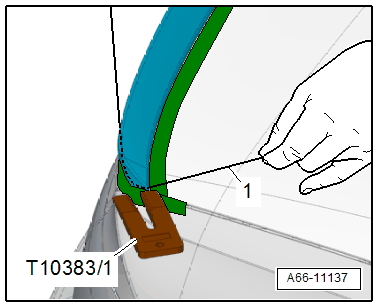

-- Slide the Wedge:T10383/1 to spread the area at the side under the spoiler.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the cutting wire -1- sideways under the spoiler.

-- Attach the cutting wire at both ends in the :VAG1351/1 .

-- Cut the spoiler free and remove it.
