Noise Insulation, Removing And Installing, AUDI RS5: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

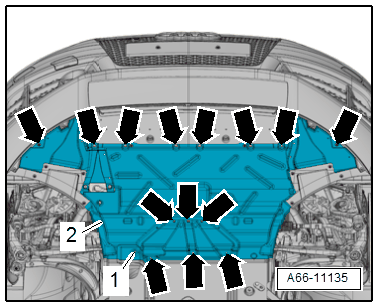

-- Remove the bolts -arrows-.

-- Remove the bolts -arrows- on the front wheel housing liner connection -1- and the front wheel spoiler.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen expanding rivet -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the quick release and bolts -arrows-.

-- Remove the front noise insulation -2- toward the rear and out of the lower section of the bumper cover.

The guide tabs for the front noise insulation will disengage while doing this.

-- Remove the front noise insulation.
