Trim Molding, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

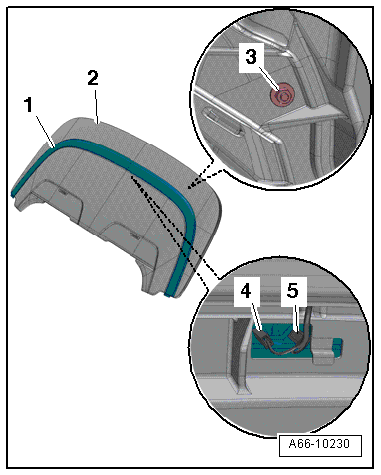

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.
-- Remove the nut -3-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Lift the trim strip molding -1- and disconnect the connectors -4 and 5-.
-- Remove the trim molding from the convertible top compartment cover -2-.
