Sill Panel Trim, Removing And Installing, Except AUDI RS5: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification. Refer to OVERVIEW - TRIM MOLDING AND COVERS .

Install in reverse order of removal. Note the following:

NOTE:

Replace damaged clips.

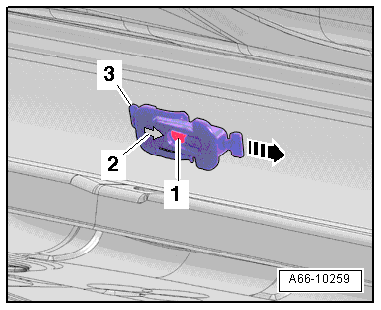

-- Slide the new clip -3- onto the pin -1- -arrow-.

The arrow -2- on the clip must point in the direction of travel.

-- Remove the adhesive residue using :VAS6349 .

-- Clean the adhesive surface on the vehicle body with :D 009 401 04 .

-- Peel off a little of the protective film -2 and 4- on both ends of the adhesive tape as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If necessary, use the pull assist -5- to remove the protective film on the ends of the stone chip protective molding.

-- Apply a bead of adhesive -3- on both ends of the stone chip protective molding -1-.

-- Mount the stone chip protective molding -2- on the clips and push it all the way to the rear in direction of travel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

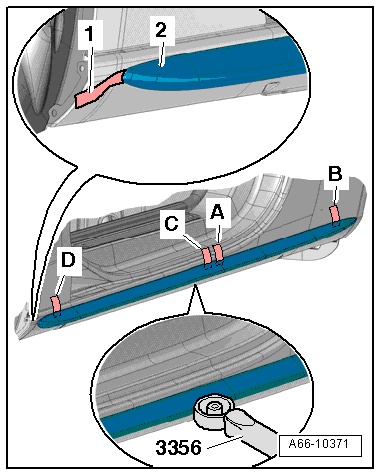

-- Peel off the protective film -1- in sequence -A through D- and press on the entire length of the stone chip protective molding using a :3356 .

Resting time approximately 3.5 hours at room temperature
