Sill Panel Trim, Removing And Installing, AUDI RS5: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully warm the sill panel trim using a :VAG1416 .

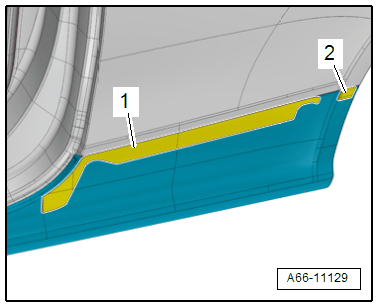

-- Carefully loosen adhesive -1 and 2- and clips on the side panel.

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER, EXCEPT AUDI RS5 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

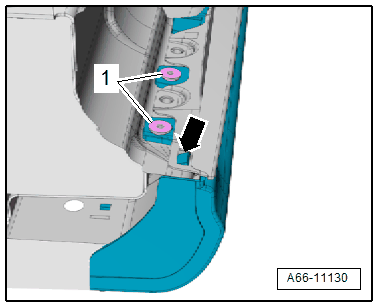

-- Remove bolts -1- and release retainer -arrow-.

-- Remove the nuts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open all of the doors.

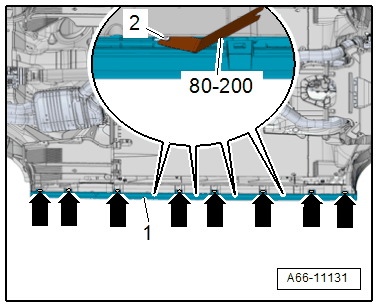

-- Use a :80-200 to open the clips -2-.

-- Remove the sill panel trim -1- with help from a second technician.
