Overview - Sill Panel Trim

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

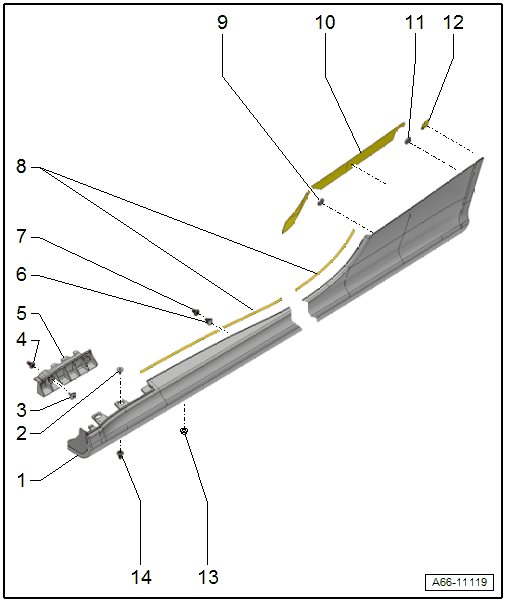

Fig 1: Exploded View Of Sill Panel Trim
GWWA66-11119Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Sill Panel Trim
  2. Bolt
    • 1.7 Nm
    • Quantity: 2
  3. Bolt
    • 1.7 Nm
    • Quantity: 2
  4. Rubber Grommet
    • Quantity: 2
  5. Mount
    • For the sill panel trim
  6. Clip
    • Quantity: 7
  7. Rubber Grommet
    • Quantity: 7
  8. Sealing Lip
    • On the door sill panel
    • Cannot be replaced separately
  9. Clip
  10. Double Sided Adhesive Tape
    • On side panel
  11. Clip
  12. Double Sided Adhesive Tape
    • On the wheel housing
  13. Nut
    • 1.7 Nm
    • Quantity: 8
  14. Rubber Grommet
    • Quantity: 2
