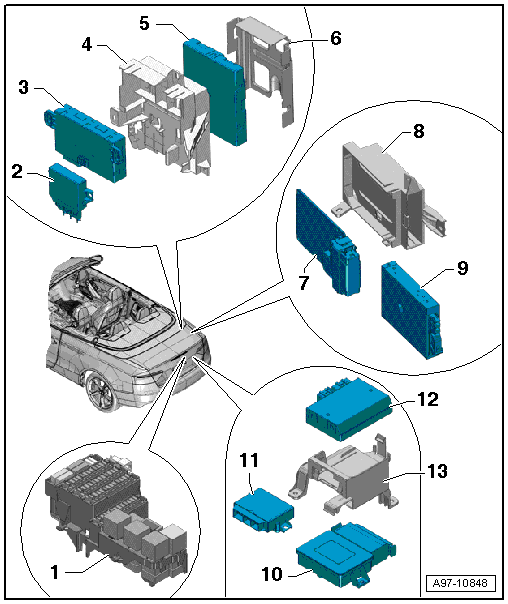

Overview - Luggage Compartment Relay/Fuse Carrier And Control Modules: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Fuse Panel F -SF-
- Removing and installing. Refer to FUSE CARRIER IN RIGHT LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
- Tightening specification. Refer to Figure.
- Parking Aid Control Module -J446-
- Overview. Refer to OVERVIEW - PARKING AID .
- Convertible Top Control Module -J256-
- Removing and installing. Refer to appropriate service information.
- Frame
- For the control modules
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to appropriate service information.
- Cover
- For Comfort System Central Control Module -J393-
- Electronic Damping Control Module -J250-
- Removing and installing. Refer to appropriate service information. .
- Frame
- For the control modules
- Rearview Camera System Control Module -J772-
- Removing and installing. Refer to appropriate service information.
- Electromechanical Parking Brake Control Module -J540-
- Removing and installing. Refer to appropriate service information .
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to appropriate service information .
- Towing Recognition Control Module -J345-
- Overview. Refer to OVERVIEW - TRAILER HITCH SOCKET AND TOWING RECOGNITION CONTROL MODULE .
- Frame
- For the control modules
