Sill Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A-PILLAR LOWER TRIM PANEL .

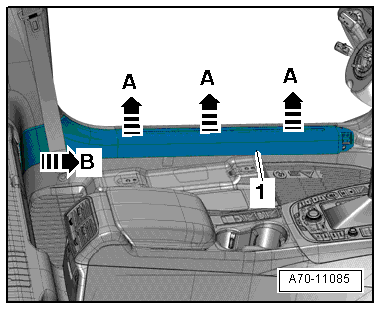

-- Unclip the sill panel -1- from the sill starting at the front using the :3409 -A arrows-.
-- Disengage the sill panel from the side trim panel -arrow B- and remove.
