Side Trim Panel, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Guiding Front Seat Belt Webbing With Seat Belt Tongue Through Seat Belt Extraction Panel And Remove Side Trim Panel.
Install In Reverse Order Of Removal and Note The Following:
NOTE:
If any clamps and clips remain in the body, remove them and insert them in the trim panel.
Check clamps and securing clips for damage or deformation, replace if necessary.

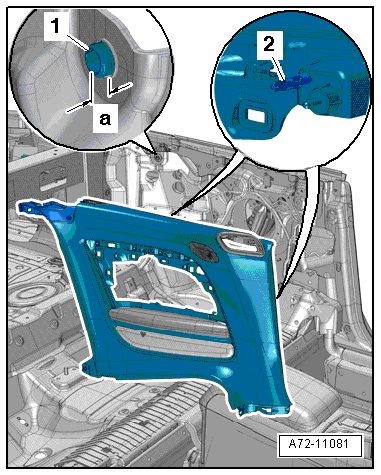

-- Adjust the adjusting sleeve -1- in the rollover protection support panel to dimension -a-.
- Dimension -a- = 2.4 mm
-- Insert the centering pins -2- on the back of the side trim panel into the holes in the body.
-- Stretch the door seal lip over the side trim panel.
