Side Trim Panel Insert, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

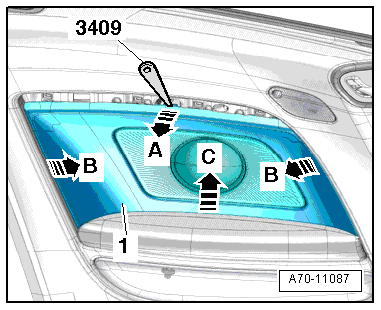

Fig 1: Identifying Side Trim Panel Insert

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim molding. Refer to TRIM MOLDING, REMOVING AND INSTALLING .

-- Starting at the top, unclip the side trim panel insert -1- using the :3409 -arrow A- and -arrows B-.

-- Pull the insert upward out of the side trim panel -arrow C- and remove.
