Seat Belt Outlet Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

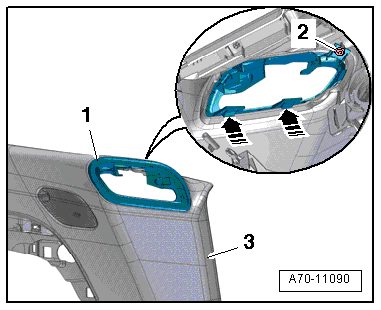

Fig 1: Identifying Belt Extraction Panel
GWWA70-11090Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the screw -2- behind the side trim panel -3-.

-- Release the hooks -arrows- and remove the seat belt outlet trim -1- forward from the side trim panel.
