Roof Frame Trim Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Front Interior Lamp -W1-. Refer to FRONT INTERIOR LAMP -W1- /FRONT PASSENGER READING LAMP -W13- /DRIVER READING LAMP -W19-, REPLACING .
-- Remove the sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .
-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
-- Vehicles with anti-theft alarm system: remove the trim for the interior sensor. Refer to INTERIOR SENSOR TRIM, REMOVING AND INSTALLING .

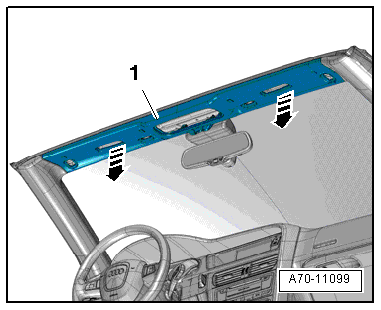

-- Unclip the roof frame trim panel -1- using the :80 - 200 from the roof frame -arrows-.
-- Lower the roof frame trim panel as much as possible.
-- Vehicles with illumination: disconnect the connector.
-- Remove the roof frame trim panel.
