Overview - Roof Frame Trim Panel
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

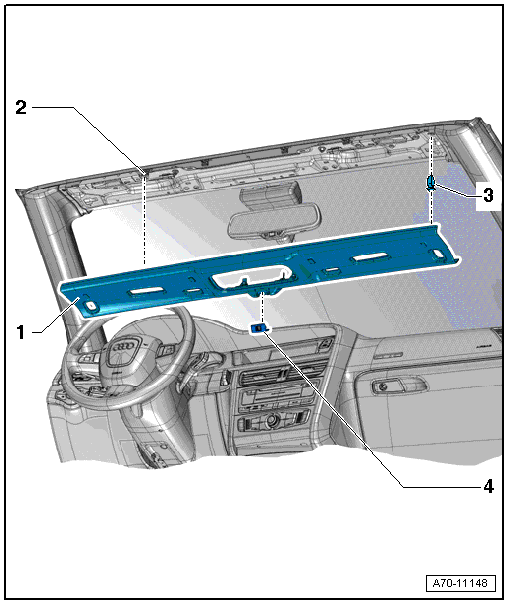

- Roof Frame Trim Panel
- Equipped on some models
- Removing and Installing. Refer to ROOF FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Clip
- Quantity: 4
- Insert in the roof frame
- Replace if damaged or deformed
- Clip
- Quantity: 6
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280 .
- Insert in the trim panel
- Replace if damaged or deformed
- Trim
- For the interior sensor
- Equipped on some models
- Removing and Installing. Refer to INTERIOR SENSOR TRIM, REMOVING AND INSTALLING .
