Trim Molding, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

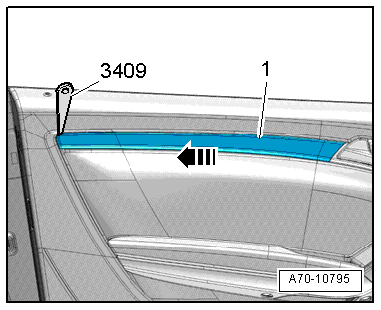

Fig 1: Prying Trim Panel -1- Off Door Trim Beginning At Rear Using Trim Removal Wedge 3409

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the decorative trim -1- off the door trim panel starting at the rear using the :3409 .

NOTE:

If necessary, use a flat blade screwdriver to gently lift the decorative trim.

-- Remove the decorative trim from the door trim panel toward the rear in the direction of the -arrow- ; while doing so, lift the rear area of the decorative trim slightly using a :3409 so the retaining hook inside the decorative trim can be loosened from the opening in the door trim panel.
