Variable Convertible Top Compartment Enclosure, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Convertible Top Compartment Cover Locking Motor -V222-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

-- Support the convertible top with a suitable wood rod.

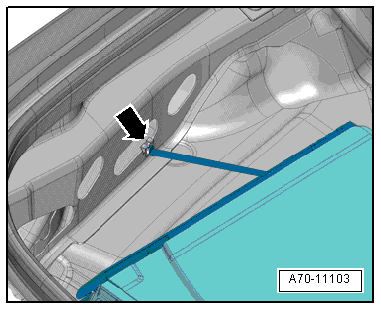

-- Unclip the guide strap -arrow- on the left and right sidewall.

Fig 2: Uncliping Guide Strap -Arrow- On Left And Right Side Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

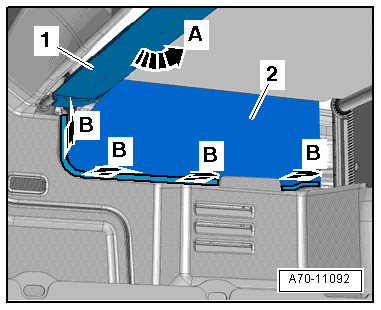

-- Push the variable convertible top compartment enclosure trim -1- upward until it engages -arrow A-.

Fig 3: Pushing Variable Convertible Top Compartment Enclosure Trim -1- Upward Until It Engages -Arrow A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the variable convertible top compartment enclosure -2- on the luggage compartment side trim panel -arrows B-.

-- Pull the front spring motor -2- on the variable convertible top compartment in the left and right guide rail -1- all the way up.

Fig 4: Pulling Front Spring Motor -2- On Variable Convertible Top Compartment In Left And Right Guide Rail -1- All Way Up

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

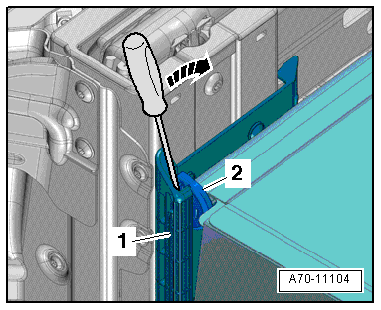

-- Release the hooks on the left and right guide rail using a small screwdriver -arrow-.

-- Pull the front spring motor -2- on the variable convertible top compartment enclosure in the guide rail -1- up to the second stop.

Fig 5: Pulling Front Spring Motor -2- On Variable Convertible Top Compartment Enclosure In Guide Rail -1- Up To Second Stop

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

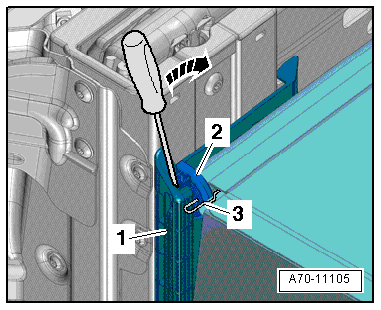

-- Insert a 1 mm diameter pin (such as a paper clip) -3- into the left and right holes in the spring motor.

WARNING:

If the spring motor is not locked, the spring is released and axle turns 24 times.
Spring motors without tension can be retightened by turning the axle 24 times from clockwise from the left.

-- Release the hooks on the left and right guide rails with a small screwdriver -arrow-, and pull the spring motor to the upper edge of the guide rail (do not disengage).

-- Repeat the procedure on the other side of the vehicle.

-- Disengage the front variable convertible top compartment enclosure on the left and right side from the guide rails and set it down.

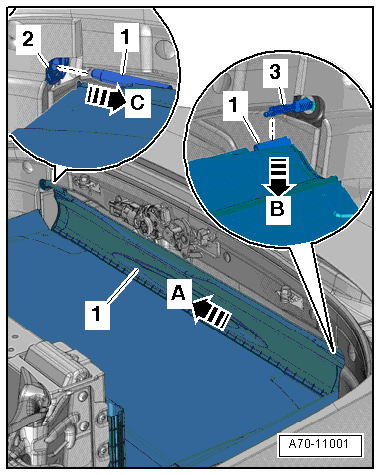

-- Slide the trim -1- to the right and off the left mounting pin -3- -arrow A-.

Fig 6: Sliding Trim -1- To Right And Off Left Mounting Pin -3- -Arrow A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the trim downward from the left mounting pin -arrow B-.

-- Pull the trim off the right mounting bracket -2- -arrow C- and remove the variable convertible top compartment enclosure.
