Right Mounting Bracket For Variable Convertible Top Compartment Enclosure, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

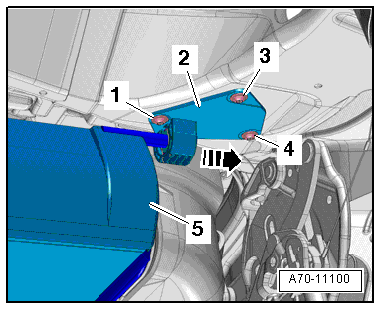

Fig 1: Identifying Right Mounting Pin, Variable Convertible Top Compartment Enclosure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

For clarity, the right mounting bracket for the variable convertible top compartment enclosure is shown without the luggage compartment trim panel.

-- Press the variable convertible top compartment enclosure trim -5- upward until it engages.

-- Remove the bolts -1, 3 and 4-.

-- Remove the mounting bracket -2- from the trim -arrow-.
