Overview - Convertible Top Compartment Side Trim Panel

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

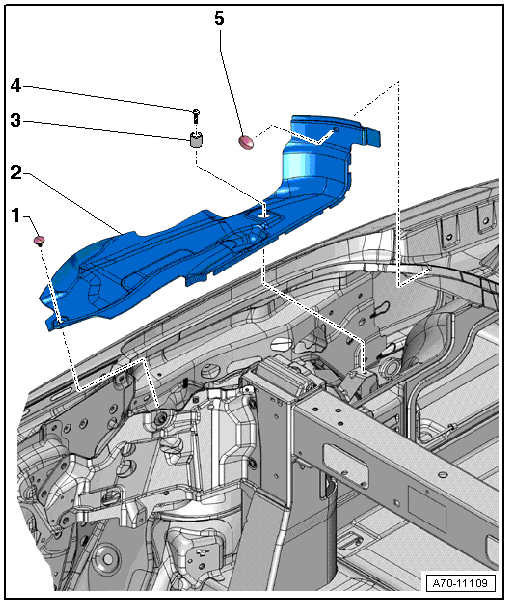

Fig 1: Exploded View Of Convertible Top Compartment Side Trim Panel Assembly
GWWA70-11109Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Expanding Clip
  2. Convertible Top Compartment Side Trim Panel
  3. Stop
    • For the convertible top frame
  4. Bolt
    • 3 Nm
  5. Clip
