Left Mounting Bracket For Variable Convertible Top Compartment Enclosure, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Sliding Trim -1- To Right And Off Left Mounting Pin -3- -Arrow A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Slide the trim -1- to the right and off the left mounting pin -3- -arrow A-.

-- Disengage the trim downward from the left mounting pin -arrow B-.

-- Pull the trim off the right mounting bracket -2- -arrow C- and remove the variable convertible top compartment enclosure.

-- Disconnect the connector -1-.

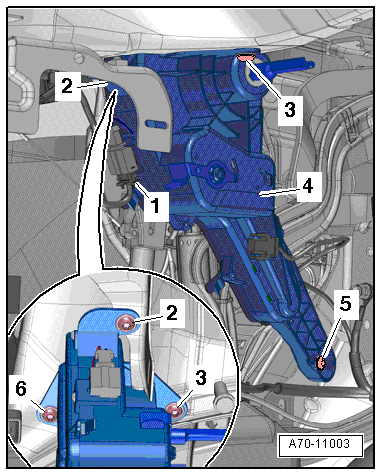

Fig 2: Disconnecting Electrical Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2, 3, 5 and 6- and remove the mounting bracket -4-.
