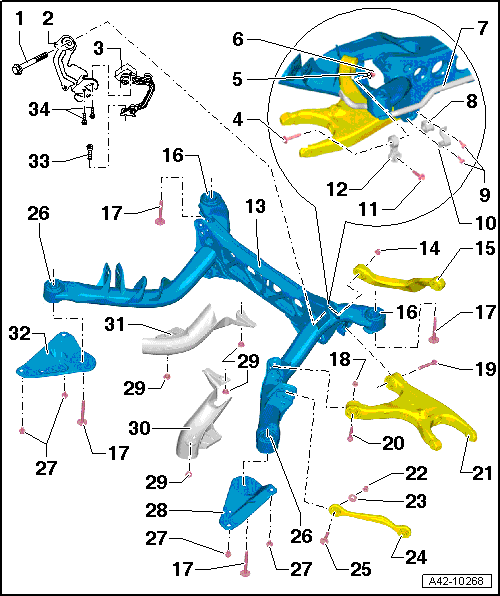

Overview - SUBFRAME, A4 With Front Wheel Drive (Fwd): Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For A Short Period Of Time, All Wheel Drive (AWD) Subframes Were Installed On Front Wheel Drive (FWD) Vehicles. Performing Repairs On The Subframe Is Not Affected.
- Bolt
- 70 Nm +180°
- Always replace if removed
- Must be tightened in the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Bracket
- Left Rear Level Control System Sensor -G76-
- Only sensors of the same version may be installed.
- Complete with components
- The sensor lever must point toward outside
- Replace in vehicle. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING
- The Headlamp Adjustment Must Be Checked After Loosening. Refer to HEADLAMP, ADJUSTING .
- If the Level Control System Sensor -- was removed and installed on a vehicle with electronically controlled damping or if the linkage was loosened, the control position must be reprogrammed. Refer to CONTROL POSITION, PROGRAMMING . Refer to Vehicle Diagnostic Tester.
- If the control position was reprogrammed on vehicles with lane assist, the Directional Stabilization Assistance Control Module -J759- must be calibrated again. Refer to LANE ASSIST, CALIBRATING .
- Bolt
- 40 Nm +90°
- Always replace if removed
- Must be tightened in the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Washer
- Nut
- Always replace if removed
- Stabilizer Bar
- The rubber bushing and clamp must not be separated from the stabilizer bar.
- Stabilizer must be removed together with coupling rod.
- Removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING, FRONT WHEEL DRIVE (FWD) VEHICLES .
- Rubber Bushing
- Replaced together with the stabilizer bar -item ) OVERVIEW - SUBFRAME, A4 WITH FRONT WHEEL DRIVE (FWD) - Stabilizer Bar and the clamp -item ) OVERVIEW - SUBFRAME, A4 WITH FRONT WHEEL DRIVE (FWD) - Clamp.
- The rubber bushing and clamp must not be separated from the stabilizer bar.
- Bolt
- 25 Nm +90°
- Always replace if removed
- Tighten evenly
- Clamp
- The rubber bushing and clamp must not be separated from the stabilizer bar.
- Bolt
- 40 Nm +90°
- Always replace if removed
- Must be tightened in the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Coupling Rod
- The coupling rod must be removed together with the stabilizer bar.
- Removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING, FRONT WHEEL DRIVE (FWD) VEHICLES .
- Subframe
- Subframe with attachments, removing and installing. Refer to REAR AXLE, REMOVING AND INSTALLING, FRONT WHEEL DRIVE (FWD) VEHICLES .
- Nut
- Always replace if removed
- Upper Transverse Link
- Rear Bonded Rubber Bushing
- Always replace on both sides.
- Replacing. Refer to SUBFRAME, SERVICING, VEHICLES WITH FRONT WHEEL DRIVE (FWD) .
- For the subframe mounting
- Depending on the model there are different versions, either a conventional and a hydraulic bonded rubber bushing is installed. Refer to REAR BONDED RUBBER BUSHING .
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Bolt
- 115 Nm +90°
- Always replace if removed
- The bolts must not be loosened or tightened when the springs are installed. Release the coil springs using the spring tensioner before loosening or tightening.
- Nut
- Always replace if removed
- Bolt
- 70 Nm +180°
- Always replace if removed
- Must be tightened in the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Bolt
- 70 Nm +180°
- Always replace if removed
- Must be tightened in the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Lower Transverse Link
- Nut
- 95 Nm
- Always replace if removed
- Must be tightened in the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Eccentric Washer
- Tie Rod
- There are versions made of aluminum and steel.
- A mixed installation is not permitted
- Eccentric Screw
- Front Bonded Rubber Bushing
- Always replace on both sides.
- Replacing. Refer to SUBFRAME, SERVICING, VEHICLES WITH FRONT WHEEL DRIVE (FWD) .
- For the subframe mounting
- Depending on the model there are different versions, either a conventional and a hydraulic bonded rubber bushing is installed. Refer to FRONT BONDED RUBBER BUSHING .
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Bolt
- 55 Nm
- Left Support
- Clip
- Not installed on all vehicles.
- Left Stone Chip Protection
- Not installed on all vehicles.
- Right Stone Chip Protection
- Not installed on all vehicles.
- Right Support
- Bolt
- 9 Nm
- Bolt
- 5 Nm
