Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the 2/3 seat bench. Refer to BENCH SEATS, REMOVING AND INSTALLING .

-- Remove the 2/3 rear seat system. Refer to REAR SEATS, REMOVING AND INSTALLING .

-- Remove the outer trim from the 2/3 section. Refer to REAR SEAT OUTER TRIM, REMOVING AND INSTALLING .

-- Remove the pass-through. Refer to PASS-THROUGH, REMOVING AND INSTALLING .

-- Remove the headrest from the 2/3 section. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the headrest guides from the 2/3 section. Refer to REAR HEADREST GUIDES, REMOVING AND INSTALLING .

-- Remove the rear center belt end fitting. Refer to REAR CENTER BELT ANCHOR, REMOVING AND INSTALLING .

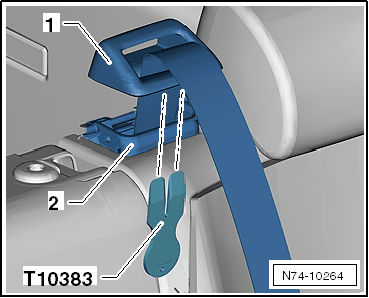

-- Use the :T10383 to carefully pry the belt extraction panel -1- from the console -2- .

Fig 1: Using Wedge T10383 To Pry Belt Extraction Panel -1- From Console -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

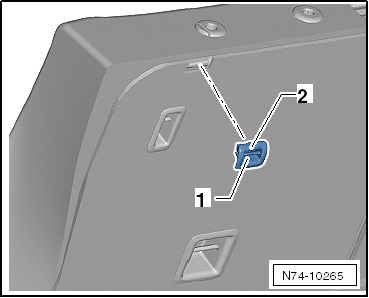

-- Use a small screwdriver to lift the retaining tab -1- in the trim -2- slightly and detach the trim from the backrest.

Fig 2: Identifying Detachment Of Trim -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the second trim in the backrest as described.

-- Pry out and remove the profiles -3- on the back of the backrest -2- -arrow- .

Fig 3: Identifying Profiles -3- On Back Of Backrest -2- -Arrow- And Cover -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Roll up the cover -1- on the sides.

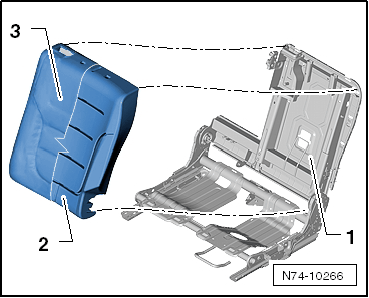

-- Remove the cushion -2- and cover -3- from the backrest -1- .

Fig 4: Identifying Removal Of Cushion -2- And Cover -3- From Backrest -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut all clips in the cushion channels and detach the cover from the cushion.
