Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the seat belt latch. Refer to FRONT SEAT BELT LATCHES, REMOVING AND INSTALLING .

-- Remove the tunnel-side trim. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the sill-side trim. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to BACKREST, REMOVING AND INSTALLING .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

-- For vehicles with a manual lumbar support, remove the adjusting lever from the shaft.

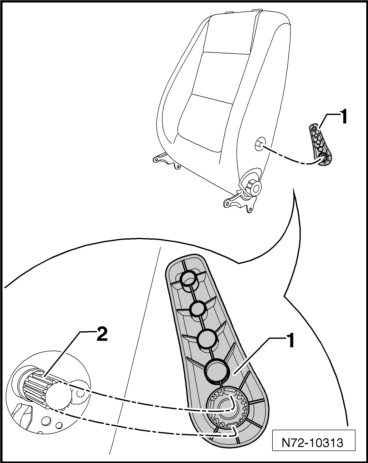

Fig 1: Identifying Lumbar Adjustment Lever, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the Velcro strap fasteners on the bottom of the rear seat backrest and detach the outer profiles -1- and -3- .

Fig 2: Identifying Velcro Strap Fasteners On Bottom Of Rear Seat Backrest And Outer Profiles -1 to 3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the center profile -2- .

-- Detach the side and upper profiles -arrows- .

-- Roll up the cover until the lower upholstery clips on the front side of the backrest are accessible.

-- Cut all clips in the cushion channels and guide the seat heater wiring harness -1- through the opening in the cushion.

Fig 3: Identifying Seat Heater Wiring Harness -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the cover over the headrest guides.

-- Pull the cushion up over the headrest guides of the backrest frame.
