Camshaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Left camshaft gear

-- Evacuate the refrigerant in the A/C system. Refer to REFRIGERANT CIRCUIT .

-- Disconnect the refrigerant line -arrow- for the A/C system. Seal the open lines with suitable plugs.

Fig 1: Disconnecting A/C System Refrigerant Line
GWWN10-10473Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vacuum pump.

Fig 2: Identifying Vacuum Pump
GWWA15-10640Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right camshaft gear:

-- Remove the high pressure pump and high pressure pump motor housing. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

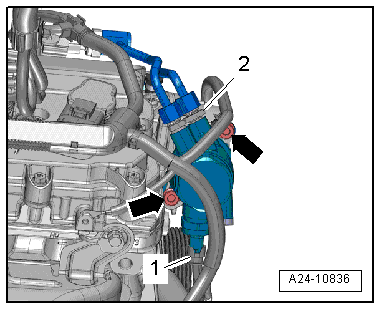

Fig 3: High Pressure Pump & Bolts
GWWA24-10836Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left and right camshafts:

-- Remove the camshaft adjuster. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .

-- Remove the bolt -arrow- and remove the Camshaft Adjustment Valve 1 -N205- / Camshaft Adjustment Valve 2 -N208-.

Fig 4: Camshaft Adjustment Valve
GWWA15-10643Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Camshaft Position Sensor -G40- / Camshaft Position Sensor 2 -G163-.

Fig 5: Camshaft Position Sensor 2 -G163- Connector Location
GWWA24-10292Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Ignore -arrow-.

-- Remove the ground cable bolt -2-.

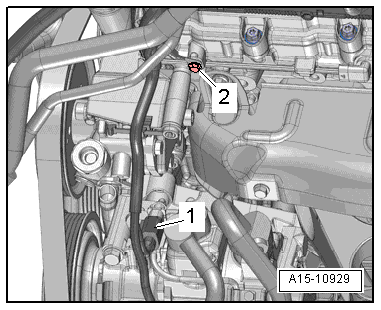

Fig 6: Ground Wire Bolt -2-
GWWA15-10929Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Ignore -1-.

-- Free up the vacuum hose -1- on cylinder bank 2 (left).

Fig 7: Identifying Vacuum Hose -1-, Bolts -Arrows- And Cover -2-
GWWA21-10462Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the cover -2-.

-- Loosen the guide frame bolts in the following sequence: -21 through 1-.

Fig 8: Camshaft Guide Frame Bolt Tightening Sequence
GWWA15-10312Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The right guide frame is a mirror image.

-- Remove the bolts, carefully loosen the guide from out of the bond and place it with the camshafts on a soft surface.

-- Remove the Camshaft Clamp:T40133  -arrows-.

-- Mark the camshafts, remove them and lay them on a clean surface.

Fig 9: Camshaft Clamp -T40133/2-
GWWN15-10687Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
