Camshaft Adjuster, Installing, Cylinder Bank 1 (Right)

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specifications. Refer to OVERVIEW - CAMSHAFT TIMING CHAINS .

NOTE:

Replace the bolts that were tightened with an additional turn.

CAUTION:

Risk of damaging valves and piston crowns.

If camshafts are rotated, crankshaft may not rest with any piston at "TDC".

Crankshaft -1- secured in "TDC" using Crankshaft Locking Pin:T40069 .

Fig 1: Crankshaft Locking Pin T40069
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Camshafts secured in "TDC" using the Camshaft Clamp:T40133/1 -arrows- (25 Nm).

Fig 2: Camshaft Clamp -T40133/1
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

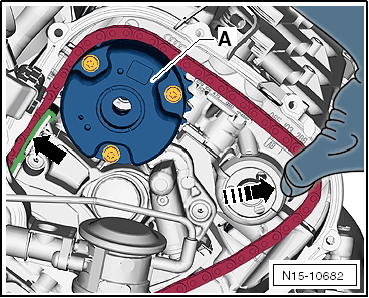

-- Place the timing chain on the camshaft adjuster -A- and place the camshaft adjuster on the camshaft. Pay attention to the following:

Fig 3: Hold The Timing Chain Under Tension In The -Direction Of The Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The timing chain must rest >>taut<< on the guide rail -arrow-.
The timing chain must be tensioned >>by hand<< in the direction of the -arrow-.

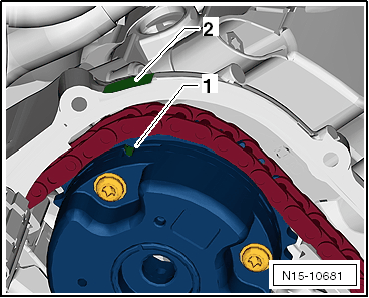

The groove -1- in the camshaft adjuster must align with the adjustment window -2-.

Fig 4: Groove -1- Must Align With The Adjustment Window -2-
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the camshaft chain sprocket into the timing chain and place the camshaft chain sprocket on the camshaft. Pay attention to the following:

Fig 5: Center Mark -1- With Adjustment Window -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

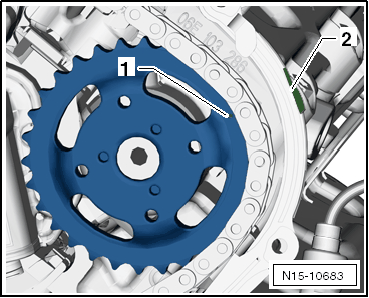

The marking point -1- must be centered with respect to the adjustment window -2-.

-- Install the bolts -1 and 2- loosely. The camshaft adjuster and the camshaft chain sprocket must be able to still be rotated on camshaft and must not tip.

Fig 6: Identifying Right Camshaft Adjuster And Camshaft Sprocket Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the chain tensioner guide rail for the right camshaft timing chain inward all the way using a screwdriver -1- and remove the Locking Pin:T40071 .

Fig 7: Identifying Right Timing Chain Tensioning

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

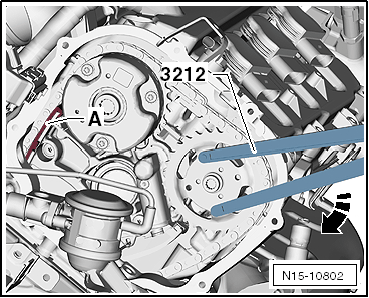

-- Position the Wrench - Pin Type:3212 on the camshaft chain sprocket.

Fig 8: Identifying Spanner Wrench -3212-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

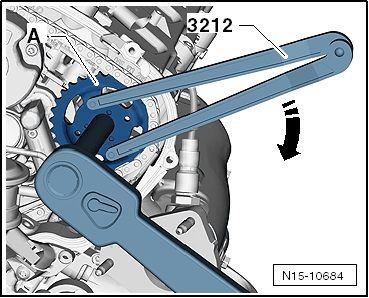

-- Press the Wrench - Pin Type:3212 in the direction of -arrow- and check if the timing chain is lying >>taut<< against the guide rail -A-. If the timing chain is still >>loose<<, the camshaft chain sprocket must be offset by one tooth.

-- Have a second technician hold the camshaft timing chain at pre-load using the Wrench - Pin Type:3212 in the direction of -arrow-.

Fig 9: Counter Holding The Retainer -3036-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts as follows while the camshaft chain sprocket is still held under tension.

Tighten the Bolt for the Exhaust Camshaft to 80 Nm
Tighten the Bolt for the Intake Camshaft to 80 Nm

-- Tighten the bolts to the final tightening specification. To do so, counterhold using the Wrench - Pin Type:3036 or the Wrench - Pin Type:3212 .

Turn the Bolt for the Exhaust Camshaft an Additional 90° Turn. While Doing so, Counterhold with the Wrench - Pin Type:3212
Turn the Bolt for the Intake Camshaft an Additional 90° Turn. While Doing so, Counterhold with the Wrench - Pin Type:3036
