Right Cylinder Head Cover, Removing And Installing: Removing

-- Remove the engine compartment cover. Refer to ENGINE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the engine cover -2- upward.

Fig 1: Engine Cover -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air guide pipe by removing the hose -1- and loosening the hose clamps -arrows-.

Fig 2: Air Guide Pipe, Hose And Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

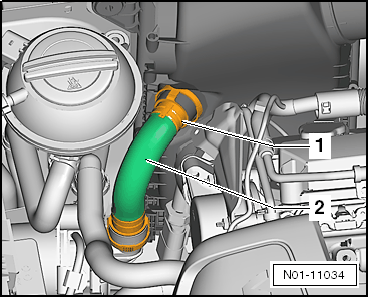

-- Remove the secondary air intake hose -2- by pressing the release buttons -1-.

Fig 3: Identifying Release Buttons -1- And Secondary Air Injection (Air) Hose -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

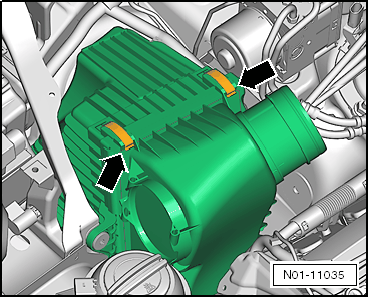

-- Release the clips -arrows- and remove the air filter upper section.

Fig 4: Identifying Clips -2- To Upper Air Filter Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ignition coils. Refer to Ignition Coils with Power Output Stages --, REMOVING AND INSTALLING .

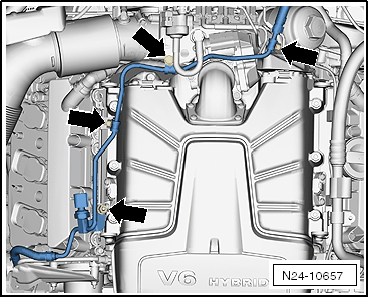

-- Loosen the mountings for the fuel pipe -arrows-. The fuel hoses remain connected.

Fig 5: Fuel Pipe Clamps -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the crankcase ventilation pipe -arrow- by pressing the release buttons.

Fig 6: Cylinder Head Tightening Sequence (2 Of 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts in a -12 to 1- sequence and remove the right cylinder head.
