Left Cylinder Head Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Hybrid vehicles have a high voltage system! Danger of electrical shock! When performing the following work, it is also necessary to work on the high voltage system. De-energize the high voltage system now. Refer to appropriate service information. .

-- Remove the engine compartment cover. Refer to ENGINE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the bolts -1 and 2- and remove the cover plate for the high voltage connection -A-.

Fig 1: Cover Panel -A- And Bolts -1 And 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the pilot contact -1- from the electric drive power and control electronics and remove it. Release and remove the high voltage cables -2, 3 and 4- in sequence.

Fig 2: Identifying Pilot Connector -1- From Electric Drive Power And Control Electronics

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

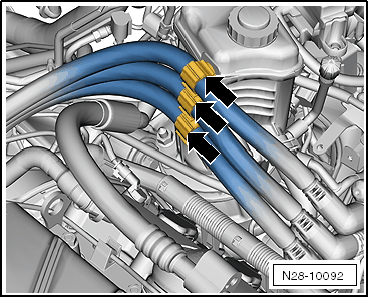

-- Unclip the high voltage cables from the brackets -arrows- and move them to the side.

Fig 3: Identifying High Voltage Cables -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ignition coils. Refer to Ignition Coils with Power Output Stages --, REMOVING AND INSTALLING .

-- Remove the crankcase ventilation hose -arrow- by pressing the release buttons.

-- Remove the bolts in a -12 through 1- sequence and remove the left cylinder head.

Fig 4: Cylinder Head Components Tightening Sequence (1 Of 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
