Camshaft Seal, Removing And Installing: Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

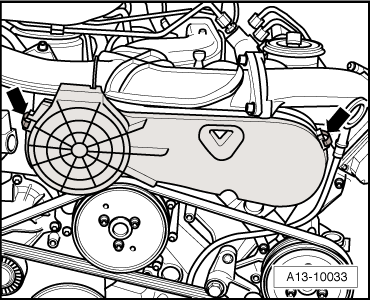

-- Loosen the clamps -arrows-.

Fig 1: Identifying Clamps -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tilt the toothed belt guard forward and disengage the pins on the bottom side of it.

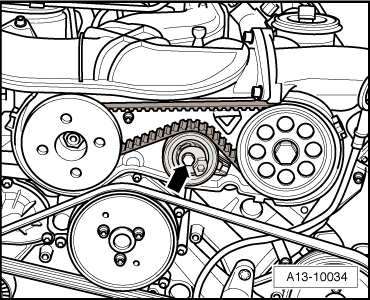

-- Loosen the tensioning roller bolt -arrow- approximately two turns.

Fig 2: Identifying Tensioner Bolt -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using the Wrench - Pin Type:3036 , loosen the central bolt -1- on the toothed belt drive sprocket approximately two turns.

Fig 3: Identifying Toothed Belt Drive Gear Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the toothed belt drive gear with the Puller - Toothed Belt Pulley:T10320 .

Fig 4: Identifying Toothed Belt Drive Gear, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the toothed belt drive sprocket with the toothed belt.

-- Move the inner section of the Puller - Camshaft Seal:2085 three turns out of the outer section and secure the inner section with the knurled bolt.

Fig 5: Identifying Seal Puller 2085

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lubricate the threaded head on the camshaft seal puller position it and install it as far as possible into the seal using force.

-- Loosen knurled bolt and turn inner part against camshaft until seal is removed.

-- Tension seal extractor in a vise at mounting points and remove seal with pliers.

-- Clean the running and sealing surfaces.

-- Install the new seal all the way using the thrust sleeve taken from Seal Installer - Crankshaft Seal:T10053 . Use the M10 x 1.25 x 40 bolt -arrow- taken from the Seal Installer - Camshaft Installer Kit:3241 .

Fig 6: Identifying Assembly Tool T10053 And M10 x 1.25 x 40 Bolt -Arrow- From Seal Installer 3241

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order, paying attention to the following:

-- Install the high pressure pump toothed belt. Refer to HIGH PRESSURE PUMP TOOTHED BELT, REMOVING AND INSTALLING .
