Cylinder Head, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING .

Left Cylinder Head:

-- Remove the high pressure pump toothed belt. Refer to HIGH PRESSURE PUMP TOOTHED BELT, REMOVING AND INSTALLING .

-- Remove the high pressure pump toothed belt with the Puller - Pulley:T40064  .

Fig 1: High Pressure Pump Toothed Belt Sprocket, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using the Wrench - Pin Type:3036  , loosen the central bolt -1- on the toothed belt drive sprocket approximately two turns.

Fig 2: Identifying Toothed Belt Drive Gear Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the toothed belt drive gear with the Puller - Toothed Belt Pulley:T10320  .

Fig 3: Identifying Toothed Belt Drive Gear, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the toothed belt drive sprocket with the toothed belt.

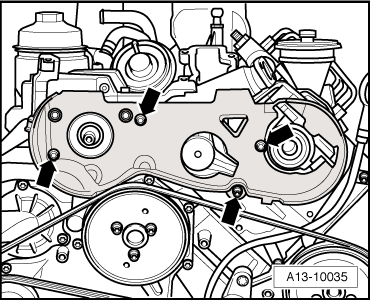

-- Remove the bolts -arrows- and the rear toothed belt guard.

Fig 4: Identifying Bolts -Arrows- And Rear Toothed Belt Guard

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

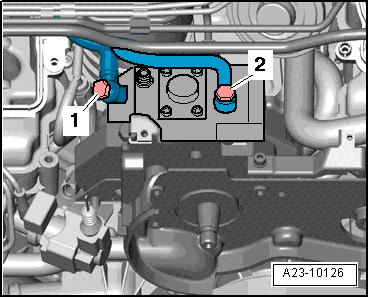

-- Remove the fuel supply line -2- and fuel return line -1- from the high pressure pump and lay it aside.

Fig 5: Identifying Fuel Supply Line Banjo Bolt -2- And Fuel Return Line Banjo Bolt -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continued for Both Sides:

-- Remove the intake manifold upper section. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .

-- Remove the left or right intake manifold lower section. Refer to INTAKE MANIFOLD LOWER SECTIONS, REMOVING AND INSTALLING .

-- Remove the affected camshaft timing chain from the camshafts. Refer to CAMSHAFTS, REMOVING AND INSTALLING .

-- Remove the banjo bolt -item 8-  OVERVIEW - CYLINDER HEAD List Item:Banjo Bolt and the coolant ventilation line.

-- Remove the connecting pipe. Refer to LEFT INTERMEDIATE PIPE, REMOVING AND INSTALLING for the left and. Refer to RIGHT INTERMEDIATE PIPE, REMOVING AND INSTALLING for the right.

-- Install the left or right cylinder head cover. Refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING .

Right Cylinder Head:

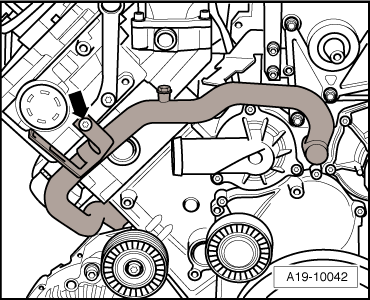

Fig 6: Identifying Right Coolant Pipe Bolt -Arrow- From Cylinder Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right coolant pipe from the cylinder head -arrow-.

Continued for Both Sides:

Fig 7: Cylinder Head Bolt Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the cylinder head bolts in the following sequence.

-- Remove bolts and carefully remove cylinder head.
