Cylinder Head Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The following removal and installation procedure is for the left cylinder head cover. The procedure on the opposite side is identical except for a few steps.

-- Disconnect the vacuum hose to the vacuum reservoir -2-.

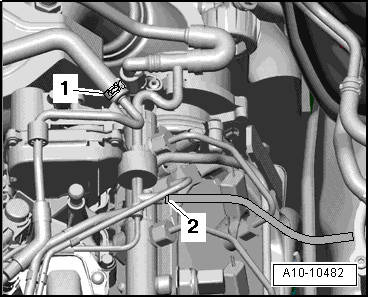

Fig 1: Identifying Vacuum Hose -2-
GWWA10-10482Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiring connector -1-.

-- Remove the high pressure fuel lines -2- and the overflow oil line -3-.

Fig 2: Identifying Wiring Connector -1-, High Pressure Fuel Lines -2- And The Overflow Oil Line -3-
GWWN15-10388Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only for Removing the Left Cylinder Head Cover:

-- Remove the engine cover bracket -1-, the bolts -arrows- and the intake manifold upper section.

Fig 3: Identifying Engine Cover Bracket -1-, Bolts -Arrows- And Upper Intake Manifold
GWWN15-10389Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continued for Both Sides:

-- Lift the tab -1-, turn the oil filler tube counterclockwise in direction of -arrow- and remove the tube.

Fig 4: Identifying Tab -1- And Position To Turn Oil Filler Tube (Counterclockwise -Arrow-)
GWWA15-10028Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiring harness bracket -5- from the cylinder head cover.

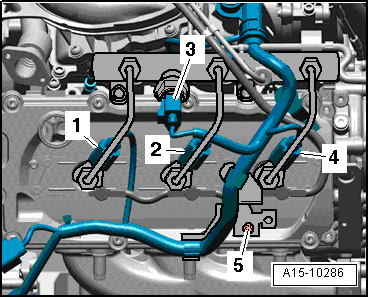

Fig 5: Identifying Connectors -1 Through 4- To Fuel Injectors
GWWA15-10286Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -1 through 4- on the high pressure reservoir (rail element) and the injectors.

-- Free up the wiring harness.

Fig 6: Identifying Release Pins Upward -Arrow-
GWWA15-10029Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

Always observe the rules for cleanliness when working on the injection system. Refer to CLEAN WORKING CONDITIONS AND FUEL SYSTEM WORK INSTRUCTIONS .

-- Pull the release pins upward -arrow- and remove the return line connections from the injectors.

-- Mark the assignment of the high pressure lines to the injectors.

-- Loosen the high pressure line union nuts -1 through 6- with the Torque Wrench 1331 Insert - Open Jaw - 19mm:VAG1331/5  or Hydraulic Line Socket - 14mm:3150  and the Union Nut Socket:T40055  .

Fig 7: Identifying High Pressure Line Union Nuts -1 Through 6-
GWWA15-10287Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove high pressure lines.

-- Remove the bolts -arrows- from the injector covers.

Fig 8: Identifying Injector Cover Bolts -Arrows-
GWWA15-10031Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the covers upward and turn them 1 /4 turn (90°).

Fig 9: Identifying Injector Tensioning Bracket Nuts -Arrows-
GWWA15-10032Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the injectors in direction of -arrows-.

-- Remove the injectors using the Puller - Unit Injector:T10055  and Puller - Unit Injector - Adapter 1:T10055/1  .

Fig 10: Identifying Puller T10055 With Adapter T10055/1
GWWA15-10033Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:
  • Mark the allocation of the injectors to the cylinder.
  • Used injectors may only be installed on the same cylinder.

-- Loosen the cylinder head cover bolts -arrows- diagonally, starting from outside and working toward the inside.

-- Remove the bolts and the cylinder head cover.

Fig 11: Cylinder Head Cover Bolts
GWWA15-10034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
