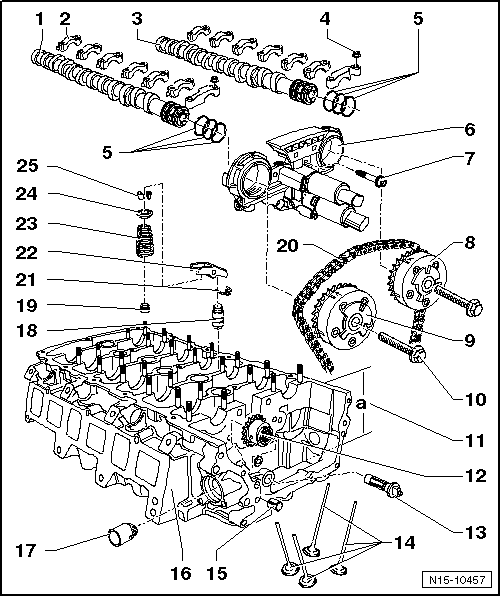

Overview - Valve Train
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Intake Camshaft
- Checking radial clearance with Plastigauge® , wear limit: 0.1 mm
- Stroke: maximum 0.01 mm
- Axial play, checking. Refer to CAMSHAFTS, CHECKING AXIAL PLAY .
- Identification. Refer to CAMSHAFT IDENTIFICATION .
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Camshaft Bearing Cap
- Installation position. Refer to Figure
- Installation sequence. Refer to CAMSHAFT, REMOVING AND INSTALLING , Camshaft, Removing and Installing
- Exhaust Camshaft
- Checking radial clearance with Plastigauge® , wear limit: 0.1 mm
- Stroke: maximum 0.01 mm
- Axial play, checking. Refer to CAMSHAFTS, CHECKING AXIAL PLAY .
- Identification. Refer to CAMSHAFT IDENTIFICATION .
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Bolt
- 5 Nm + 45° turn
- O-rings
- If leaking, replace completely
- Coat contact surfaces of sealing rings when installing control housing.
- Do not spread sealing rings excessively when inserting
- Control Housing
- Oil contact surface of sealing rings before installing
- Camshaft adjustment valves, removing and installing. Refer to CAMSHAFT ADJUSTER VALVES, REMOVING AND INSTALLING .
- Markings for valve timing. Refer to Figure
- Overview - control housing. Refer to OVERVIEW - CONTROL HOUSING .
- Check the control housing strainer for soiling before installing. Refer to Figure.
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING
- Control Housing Bolts
- Tightening specification. Refer to OVERVIEW - CONTROL HOUSING .
- Exhaust Camshaft Adjuster
- Identification: 32A
- Rotate engine only with camshaft adjuster installed and chain installed
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
- Intake Camshaft Adjuster
- Identification: 24E
- Rotate engine only with camshaft adjuster installed and chain installed
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
-
- 60 Nm + 90° turn
- Always replace
- Contact surface of sensor wheel at bolt head must be dry when installing
- For removal and installation, counterhold the camshaft with a 27 mm open end wrench. Refer to CAMSHAFT, REMOVING AND INSTALLING
- Cylinder Head Height
- Minimum height: a = 139.9 mm
- High Pressure Pump Drive Chain Sprocket
- With inner spline
- The bearing shaft fits in only one position
- Bearing Shaft
- The bearing shaft only fits in the drive chain sprocket in one position.
- Coat the bearing shaft with oil before installing.
- Vacuum pump drive shaft
- Valves
- Do not rework, only lapping is permitted
- Valve dimensions. Refer to Figure
- Alignment Sleeve
- Cylinder Head
- Check for distortion. Refer to Figure
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Valve seats, reworking. Refer to VALVE SEATS, REWORKING .
- After replacing, replace entire amount of coolant.
- Pump Plunger
- Note the installation position
- Support
- Check the axial play in the camshafts before installing. Refer to CAMSHAFTS, CHECKING AXIAL PLAY .
- Do not interchange
- With hydraulic valve clearance compensation
- Valve Stem Seal
- Replacing. Refer to VALVE STEM SEALS, REMOVING AND INSTALLING .
- Camshaft Timing Chain
- Mark direction of rotation before removing (installation position). Refer to Fig 2
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
- Clip
- Make sure it is secure
- Roller Rocker Lever
- Check the axial play in the camshafts before installing. Refer to CAMSHAFTS, CHECKING AXIAL PLAY .
- Do not interchange
- Check roller for easy movement
- Lubricate contact surface
- Use securing clip to clip onto support element when installing
- Valve Spring
- Note the installation position
- Removing and installing. Refer to VALVE STEM SEALS, REMOVING AND INSTALLING , replacing valve stem seal
- Valve Spring Retainer
- Valve Retainers
